memory

Unlike traditional C/C++, Go is a GC language. In most cases, memory allocation and deallocation are automatically managed by Go. The compiler decides whether an object's memory should be allocated on the stack or heap, basically without user participation in memory management. Users only need to use memory. In Go, heap memory management mainly has two large components: the memory allocator is responsible for heap memory allocation, and the garbage collector is responsible for recycling and releasing useless heap memory. This article mainly discusses how the memory allocator works. Go's memory allocator is largely influenced by Google's TCMalloc memory allocator.

Allocators

In Go, there are two types of memory allocators: one is the linear allocator, and the other is the linked allocator.

Linear Allocation

The linear allocator corresponds to the runtime.linearAlloc structure, as shown below:

type linearAlloc struct {
  next   uintptr // next free byte
  mapped uintptr // one byte past end of mapped space
  end    uintptr // end of reserved space

  mapMemory bool // transition memory from Reserved to Ready if true
}

This allocator pre-allocates a contiguous memory space from the operating system. next points to the usable memory address, and end points to the end address of the memory space, which can be understood as shown in the figure below.

The linear allocator's memory allocation method is very easy to understand. It checks whether there's enough remaining space to accommodate based on the requested memory size. If enough, it updates the next field and returns the starting address of the remaining space. The code is as follows:

func (l *linearAlloc) alloc(size, align uintptr, sysStat *sysMemStat) unsafe.Pointer {
  p := alignUp(l.next, align)
  if p+size > l.end {
    return nil
  }
  l.next = p + size
  return unsafe.Pointer(p)
}

The advantage of this allocation method is that it's fast and simple. The disadvantage is also quite obvious: it cannot reuse released memory because the next field only points to the remaining space memory address. It cannot perceive previously used and released memory space, which causes a lot of memory space waste, as shown in the figure below.

So linear allocation is not the main allocation method in Go. It's only used as a memory pre-allocation function on 32-bit machines.

Linked Allocation

The linked allocator corresponds to the runtime.fixalloc structure. Memory allocated by the linked allocator is not contiguous and exists as a singly linked list. The linked allocator consists of several fixed-size memory blocks, and each memory block consists of several fixed-size memory chunks. Each time memory is allocated, a fixed-size memory chunk is used.

type fixalloc struct {
  size   uintptr
  first  func(arg, p unsafe.Pointer) // called first time p is returned
  arg    unsafe.Pointer
  list   *mlink
  chunk  uintptr // use uintptr instead of unsafe.Pointer to avoid write barriers
  nchunk uint32  // bytes remaining in current chunk
  nalloc uint32  // size of new chunks in bytes
  inuse  uintptr // in-use bytes now
  stat   *sysMemStat
  zero   bool // zero allocations
}

type mlink struct {
  _    sys.NotInHeap
  next *mlink
}

Its fields are not as simple and easy to understand as the linear allocator. Here's a brief introduction to the important ones:

size: How much memory is used each time memory is allocated.
list: Points to the head node of reusable memory chunks. Each memory chunk size is determined by size.
chunk: Points to the idle address in the currently used memory block.
nchunk: Remaining available bytes in the current memory block.
nalloc: Memory block size, fixed at 16KB.
inuse: Total bytes of memory currently in use.
zero: Whether to clear memory when reusing memory blocks.

The linked allocator holds references to the current memory block and reusable memory chunks. Each memory block size is fixed at 16KB, which is set during initialization.

const _FixAllocChunk = 16 << 10

func (f *fixalloc) init(size uintptr, first func(arg, p unsafe.Pointer), arg unsafe.Pointer, stat *sysMemStat) {
  if size > _FixAllocChunk {
    throw("runtime: fixalloc size too large")
  }
  if min := unsafe.Sizeof(mlink{}); size < min {
    size = min
  }

  f.size = size
  f.first = first
  f.arg = arg
  f.list = nil
  f.chunk = 0
  f.nchunk = 0
  f.nalloc = uint32(_FixAllocChunk / size * size)
  f.inuse = 0
  f.stat = stat
  f.zero = true
}

The distribution of memory blocks is shown in the figure below. Memory blocks in the figure are arranged according to creation time. In reality, their addresses are not contiguous.

The memory size allocated by the linked allocator each time is also fixed, determined by fixalloc.size. During allocation, it first checks whether there are reusable memory blocks. If so, it prioritizes using reusable memory blocks, then uses the current memory block. If the current memory block's remaining space is insufficient to accommodate, it creates a new memory block. This part of the logic corresponds to the following code:

func (f *fixalloc) alloc() unsafe.Pointer {
  if f.size == 0 {
    print("runtime: use of FixAlloc_Alloc before FixAlloc_Init\n")
    throw("runtime: internal error")
  }

  if f.list != nil {
    v := unsafe.Pointer(f.list)
    f.list = f.list.next
    f.inuse += f.size
    if f.zero {
      memclrNoHeapPointers(v, f.size)
    }
    return v
  }
  if uintptr(f.nchunk) < f.size {
    f.chunk = uintptr(persistentalloc(uintptr(f.nalloc), 0, f.stat))
    f.nchunk = f.nalloc
  }

  v := unsafe.Pointer(f.chunk)
  if f.first != nil {
    f.first(f.arg, v)
  }
  f.chunk = f.chunk + f.size
  f.nchunk -= uint32(f.size)
  f.inuse += f.size
  return v
}

The advantage of the linked allocator is precisely that it can reuse released memory. The basic unit for reusing memory is a fixed-size memory chunk, whose size is determined by fixalloc.size. When releasing memory, the linked allocator adds the memory chunk as the head node to the idle memory chunk linked list. The code is as follows:

func (f *fixalloc) free(p unsafe.Pointer) {
  f.inuse -= f.size
  v := (*mlink)(p)
  v.next = f.list
  f.list = v
}

Memory Components

Go's memory allocator is mainly composed of the following components: mspan, heaparena, mcache, mcentral, and mheap. They work layer by layer to manage Go's heap memory.

mspan

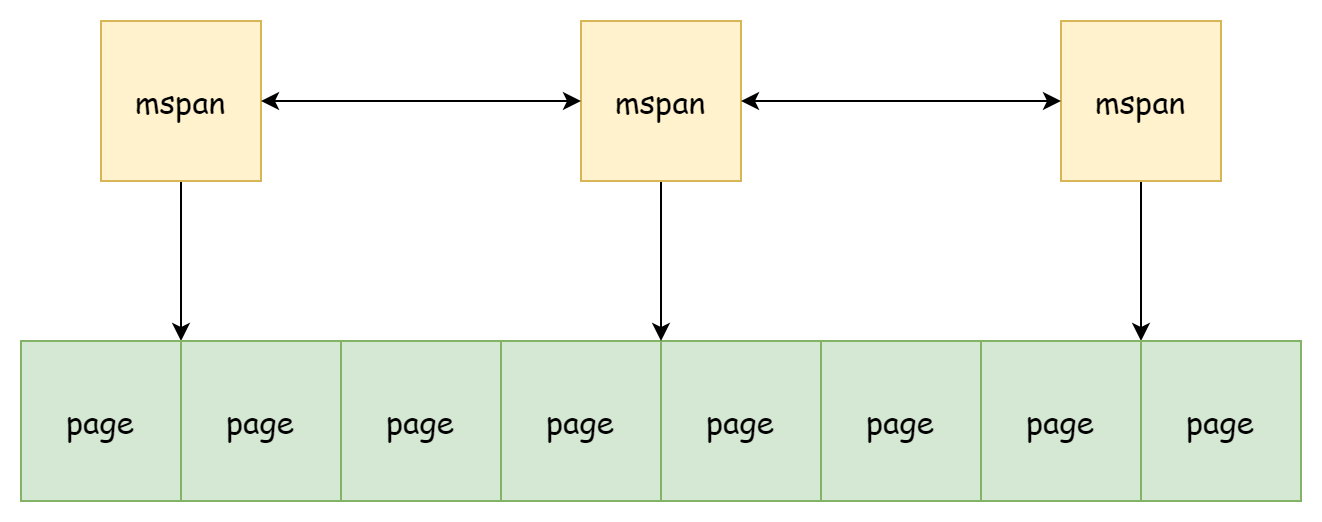

runtime.mspan is the basic unit in Go memory allocation. Its structure is as follows:

type mspan struct {
    next *mspan     // next span in list, or nil if none
    prev *mspan     // previous span in list, or nil if none

    startAddr uintptr // address of first byte of span aka s.base()
    npages    uintptr // number of pages in span
    freeindex uintptr

    spanclass             spanClass     // size class and noscan (uint8)
    needzero              uint8         // needs to be zeroed before allocation
    elemsize              uintptr       // computed from sizeclass or from npages
    limit                 uintptr       // end of data in span
    state                 mSpanStateBox // mSpanInUse etc; accessed atomically (get/set methods)

    nelems uintptr // number of object in the span.
    allocCache uint64
    allocCount            uint16        // number of allocated objects
    ...
}

mspan and mspan are linked via next and prev as a doubly linked list. Memory addresses are not contiguous. Each mspan manages mspan.npages pages of runtime.pageSize size memory. Usually, the page size is 8KB. mspan.startAddr records the starting address of these pages, and mspan.limit records the end address of used memory. Each mspan stores elements of fixed size elemsize, so the number of elements it can hold is also fixed. Due to the fixed quantity, objects are distributed in mspan like an array, in the range [0, nelems]. freeindex records the index of the next available slot for storing objects. mspan has three states:

mSpanDead: Memory has been released.
mSpanInUse: Allocated to the heap.
mSpanManual: Allocated to manually managed memory parts, such as the stack.

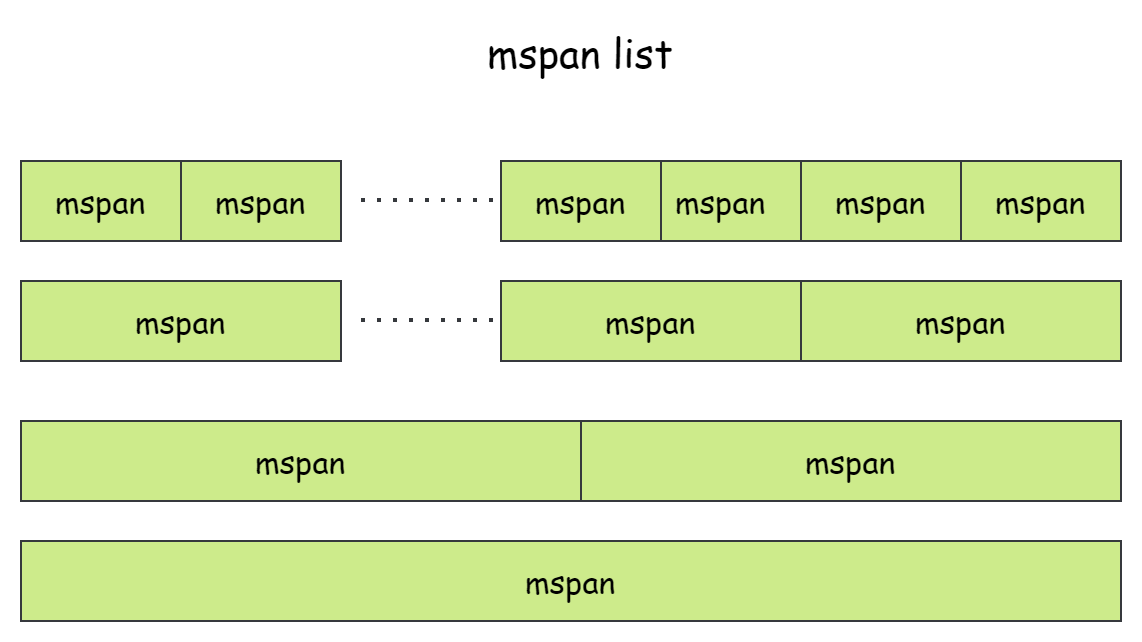

Determining mspan element size is spanClass. spanClass itself is a uint8 type integer. The high seven bits store the class value 0-67, and the last bit is used to indicate noscan, i.e., whether it contains pointers.

type spanClass uint8

func (sc spanClass) sizeclass() int8 {
  return int8(sc >> 1)
}

func (sc spanClass) noscan() bool {
  return sc&1 != 0
}

It has a total of 68 different values. All values are stored in table form in the runtime.sizeclasses.go file. At runtime, using spanClass through runtime.class_to_size can obtain mspan object size, and through class_to_allocnpages can obtain mspan page count.

class	max object size	span size	object count	tail waste	max memory waste rate	min alignment
1	8	8192	1024	0	87.50%	8
2	16	8192	512	0	43.75%	16
3	24	8192	341	8	29.24%	8
4	32	8192	256	0	21.88%	32
5	48	8192	170	32	31.52%	16
6	64	8192	128	0	23.44%	64
7	80	8192	102	32	19.07%	16
8	96	8192	85	32	15.95%	32
9	112	8192	73	16	13.56%	16
10	128	8192	64	0	11.72%	128
11	144	8192	56	128	11.82%	16
12	160	8192	51	32	9.73%	32
13	176	8192	46	96	9.59%	16
14	192	8192	42	128	9.25%	64
15	208	8192	39	80	8.12%	16
16	224	8192	36	128	8.15%	32
17	240	8192	34	32	6.62%	16
18	256	8192	32	0	5.86%	256
19	288	8192	28	128	12.16%	32
20	320	8192	25	192	11.80%	64
21	352	8192	23	96	9.88%	32
22	384	8192	21	128	9.51%	128
23	416	8192	19	288	10.71%	32
24	448	8192	18	128	8.37%	64
25	480	8192	17	32	6.82%	32
26	512	8192	16	0	6.05%	512
27	576	8192	14	128	12.33%	64
28	640	8192	12	512	15.48%	128
29	704	8192	11	448	13.93%	64
30	768	8192	10	512	13.94%	256
31	896	8192	9	128	15.52%	128
32	1024	8192	8	0	12.40%	1024
33	1152	8192	7	128	12.41%	128
34	1280	8192	6	512	15.55%	256
35	1408	16384	11	896	14.00%	128
36	1536	8192	5	512	14.00%	512
37	1792	16384	9	256	15.57%	256
38	2048	8192	4	0	12.45%	2048
39	2304	16384	7	256	12.46%	256
40	2688	8192	3	128	15.59%	128
41	3072	24576	8	0	12.47%	1024
42	3200	16384	5	384	6.22%	128
43	3456	24576	7	384	8.83%	128
44	4096	8192	2	0	15.60%	4096
45	4864	24576	5	256	16.65%	256
46	5376	16384	3	256	10.92%	256
47	6144	24576	4	0	12.48%	2048
48	6528	32768	5	128	6.23%	128
49	6784	40960	6	256	4.36%	128
50	6912	49152	7	768	3.37%	256
51	8192	8192	1	0	15.61%	8192
52	9472	57344	6	512	14.28%	256
53	9728	49152	5	512	3.64%	512
54	10240	40960	4	0	4.99%	2048
55	10880	32768	3	128	6.24%	128
56	12288	24576	2	0	11.45%	4096
57	13568	40960	3	256	9.99%	256
58	14336	57344	4	0	5.35%	2048
59	16384	16384	1	0	12.49%	8192
60	18432	73728	4	0	11.11%	2048
61	19072	57344	3	128	3.57%	128
62	20480	40960	2	0	6.87%	4096
63	21760	65536	3	256	6.25%	256
64	24576	24576	1	0	11.45%	8192
65	27264	81920	3	128	10.00%	128
66	28672	57344	2	0	4.91%	4096
67	32768	32768	1	0	12.50%	8192

The calculation logic for these values can be found in the printComment function of runtime.mksizeclasses.go. The maximum memory waste rate formula is:

float64((size-prevSize-1)*objects+tailWaste) / float64(spanSize)

For example, when class is 2, its maximum memory waste rate is:

((16-8-1)*512+0)/8192 = 0.4375

When class value is 0, it's the spanClass used for allocating large objects above 32KB. Basically, one large object occupies one mspan. So Go's heap memory is actually composed of several mspan linked lists of different fixed sizes.

heaparena

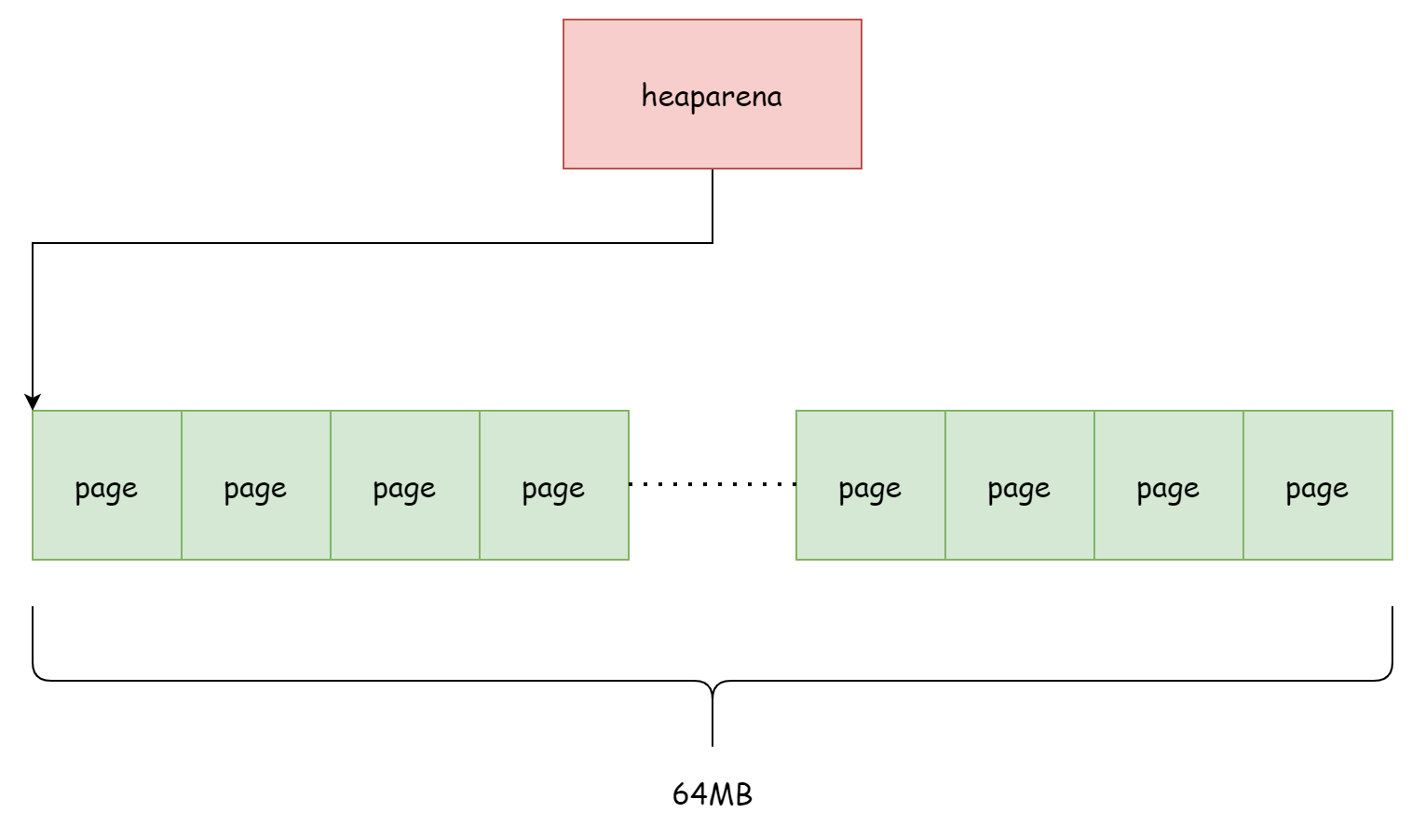

As mentioned earlier, mspan consists of several pages, but mspan only holds references to page addresses and is not responsible for managing these pages. The one truly responsible for managing these page memories is runtime.heaparena. Each heaparena manages several pages. heaparena size is determined by runtime.heapArenaBytes, usually 64MB. bitmap is used to identify whether the corresponding address in the page stores objects. zeroedBase is the starting address of the page memory managed by this heaparena. spans records which mspan uses each page.

type heapArena struct {
  _ sys.NotInHeap
  bitmap [heapArenaBitmapWords]uintptr
  noMorePtrs [heapArenaBitmapWords / 8]uint8
  spans [pagesPerArena]*mspan
  pageInUse [pagesPerArena / 8]uint8
  pageMarks [pagesPerArena / 8]uint8
  pageSpecials [pagesPerArena / 8]uint8
  checkmarks *checkmarksMap
  zeroedBase uintptr
}

The logic about pages and mspan records can be found in the mheap.setSpans method, as follows:

func (h *mheap) setSpans(base, npage uintptr, s *mspan) {
  p := base / pageSize
  ai := arenaIndex(base)
  ha := h.arenas[ai.l1()][ai.l2()]
  for n := uintptr(0); n < npage; n++ {
    i := (p + n) % pagesPerArena
    if i == 0 {
      ai = arenaIndex(base + n*pageSize)
      ha = h.arenas[ai.l1()][ai.l2()]
    }
    ha.spans[i] = s
  }
}

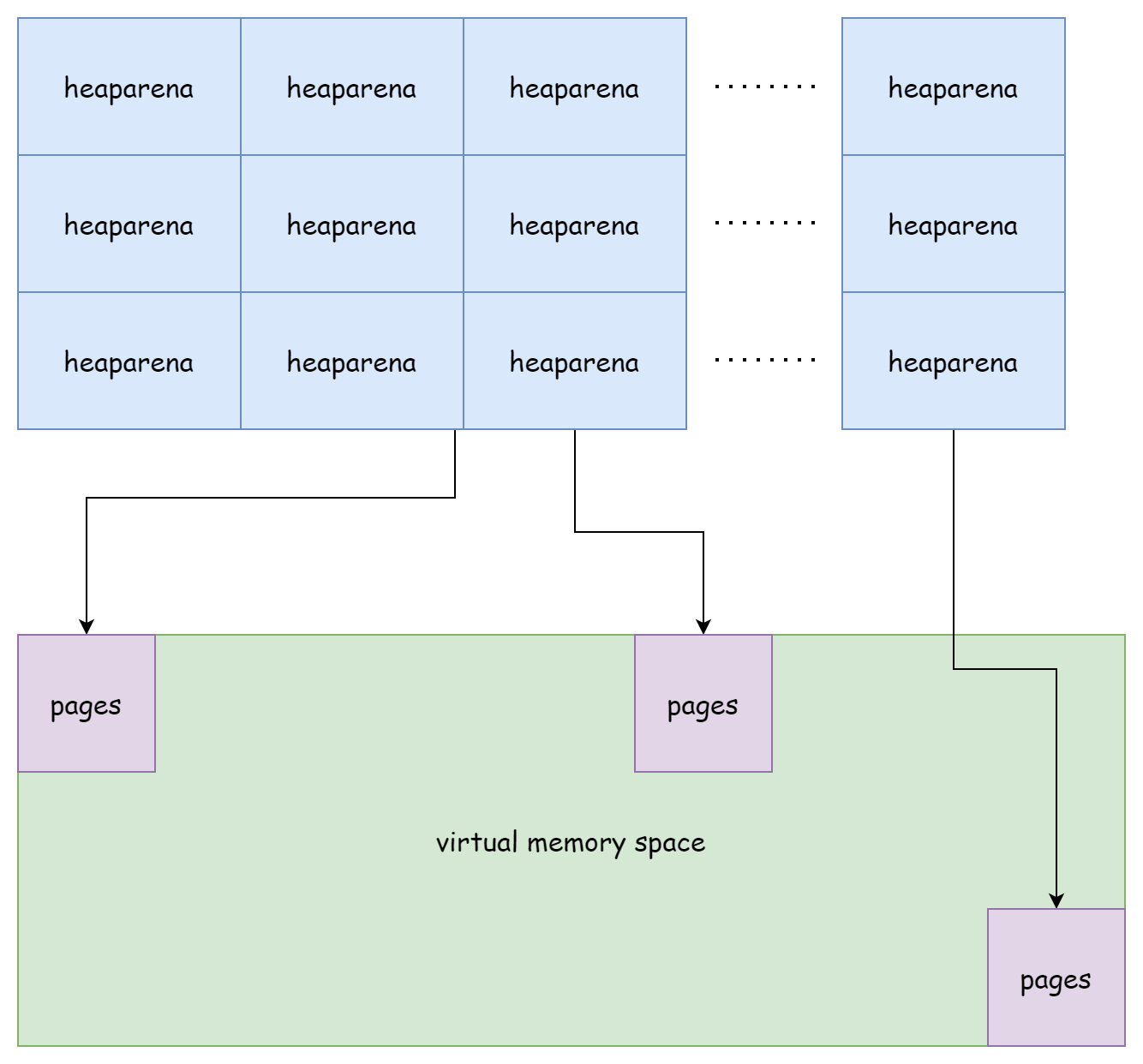

In Go heap, all page memory is managed by a two-dimensional heaparena array. See the mheap.arenas field:

type mheap struct {
  arenas [1 << arenaL1Bits]*[1 << arenaL2Bits]*heapArena
}

On 64-bit Windows platforms, the array's first dimension is 1 << 6, and the second dimension is 1 << 16. On 64-bit Linux platforms, the first dimension is 1, and the second dimension is 1 << 22. This two-dimensional array composed of all heaparena forms Go runtime's virtual memory space. Overall, it looks like the figure below.

Although heaparena are adjacent, the page memories they manage are not contiguous.

mcache

mcache corresponds to the runtime.mcache structure, which has appeared in the concurrent scheduling article. Although its name is mcache, it's actually bound to processor P. mcache is the memory cache on each processor P, containing the mspan linked list array alloc. The array size is fixed at 136, which is exactly twice the number of spanClass. There's also the tiny object cache tiny, where tiny points to the starting address of tiny object memory, tinyoffset is the idle memory offset relative to the starting address, and tinyAllocs indicates how many tiny objects have been allocated. For stack cache stackcache, you can learn about it in Stack Memory Allocation.

type mcache struct {
    _ sys.NotInHeap

    nextSample uintptr // trigger heap sample after allocating this many bytes
    scanAlloc  uintptr // bytes of scannable heap allocated
    tiny       uintptr
    tinyoffset uintptr
    tinyAllocs uintptr

    alloc [numSpanClasses]*mspan
    stackcache [_NumStackOrders]stackfreelist
    flushGen atomic.Uint32
}

During initialization, the linked lists in mcache's alloc only contain an empty head node runtime.emptymspan, which is an mspan with no available memory.

func allocmcache() *mcache {
  var c *mcache
  systemstack(func() {
    lock(&mheap_.lock)
    c = (*mcache)(mheap_.cachealloc.alloc())
    c.flushGen.Store(mheap_.sweepgen)
    unlock(&mheap_.lock)
  })
  for i := range c.alloc {
    c.alloc[i] = &emptymspan
  }
  c.nextSample = nextSample()
  return c
}

Only when memory allocation is needed will it apply for a new mspan from mcentral to replace the original empty span. This work is completed by the mcache.refill method. Its only call entry is the runtime.mallocgc function. Below is the simplified code:

func (c *mcache) refill(spc spanClass) {
  // Return the current cached span to the central lists.
  s := c.alloc[spc]

  // Get a new cached span from the central lists.
  s = mheap_.central[spc].mcentral.cacheSpan()
  if s == nil {
    throw("out of memory")
  }

  c.scanAlloc = 0

  c.alloc[spc] = s
}

The benefit of using mcache is that memory allocation doesn't require a global lock. However, when its memory is insufficient and it needs to access mcentral, locking is still required.

mcentral

runtime.mcentral manages all mspan storing small objects in the heap. When mcache applies for memory, it's allocated by mcentral.

type mcentral struct {
    _         sys.NotInHeap
    spanclass spanClass
    partial [2]spanSet
    full    [2]spanSet
}

mcentral has few fields. spanClass indicates the stored mspan type. partial and full are two spanSet. The former stores mspan with idle memory, and the latter stores mspan without idle memory. mcentral is directly managed by mheap heap. At runtime, there are a total of 136 mcentral.

type mheap struct {
    central [numSpanClasses]struct {
        mcentral mcentral
        pad      [(cpu.CacheLinePadSize - unsafe.Sizeof(mcentral{})%cpu.CacheLinePadSize) % cpu.CacheLinePadSize]byte
    }
}

mcentral is mainly responsible for two tasks: allocating available mspan to mcache when memory is sufficient, and applying for a new mspan from mheap when memory is insufficient. The work of allocating mspan to mcache is completed by the mcentral.cacheSpan method. First, it tries to find available mspan in the swept set of the idle list:

// Try partial swept spans first.
sg := mheap_.sweepgen
if s = c.partialSwept(sg).pop(); s != nil {
    goto havespan
}

If not found, it looks for available mspan in the unswept set of the idle list:

for ; spanBudget >= 0; spanBudget-- {
    s = c.partialUnswept(sg).pop()
    if s == nil {
        break
    }
    if s, ok := sl.tryAcquire(s); ok {
        s.sweep(true)
        sweep.active.end(sl)
        goto havespan
    }
}

If still not found, it goes to the non-idle list's unswept set to look:

for ; spanBudget >= 0; spanBudget-- {
    s = c.fullUnswept(sg).pop()
    if s == nil {
        break
    }
    if s, ok := sl.tryAcquire(s); ok {
        s.sweep(true)
        freeIndex := s.nextFreeIndex()
        if freeIndex != s.nelems {
            s.freeindex = freeIndex
            sweep.active.end(sl)
            goto havespan
        }
        c.fullSwept(sg).push(s.mspan)
    }
}

If still not found in the end, the mcentral.grow method applies for a new mspan from mheap:

s = c.grow()
if s == nil {
    return nil
}

Under normal circumstances, an available mspan will be returned one way or another:

havespan:

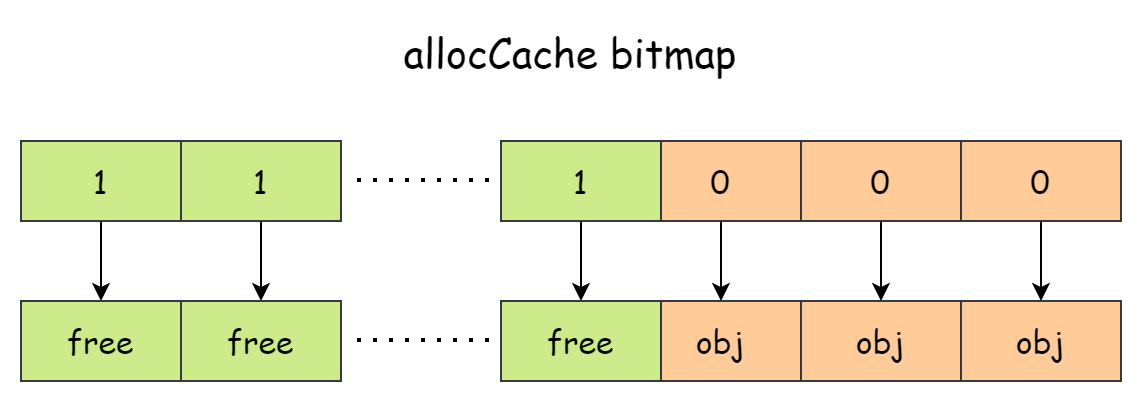

  freeByteBase := s.freeindex &^ (64 - 1)
  whichByte := freeByteBase / 8
  // Init alloc bits cache.
  s.refillAllocCache(whichByte)
  s.allocCache >>= s.freeindex % 64

  return s

For the process of applying for mspan from mheap, it actually calls the mheap.alloc method, which returns a new mspan:

func (c *mcentral) grow() *mspan {
  npages := uintptr(class_to_allocnpages[c.spanclass.sizeclass()])
  size := uintptr(class_to_size[c.spanclass.sizeclass()])

  s := mheap_.alloc(npages, c.spanclass)
  if s == nil {
    return nil
  }

  n := s.divideByElemSize(npages << _PageShift)
  s.limit = s.base() + size*n
  s.initHeapBits(false)
  return s
}

After initializing it properly, it can be allocated to mcache for use.

mheap

runtime.mheap is the manager of Go language heap memory. At runtime, it exists as the global variable runtime.mheap_:

var mheap_ mheap

It manages all created mspan, all mcentral, and all heaparena, as well as many other various allocators. Its simplified structure is as follows:

type mheap struct {
    _ sys.NotInHeap

    lock mutex

    allspans []*mspan // all spans out there

    pagesInUse         atomic.Uintptr // pages of spans in stats mSpanInUse
    pagesSwept         atomic.Uint64  // pages swept this cycle
    pagesSweptBasis    atomic.Uint64  // pagesSwept to use as the origin of the sweep ratio

    arenas [1 << arenaL1Bits]*[1 << arenaL2Bits]*heapArena
    allArenas []arenaIdx
    sweepArenas []arenaIdx
    central [numSpanClasses]struct {
        mcentral mcentral
        pad      [(cpu.CacheLinePadSize - unsafe.Sizeof(mcentral{})%cpu.CacheLinePadSize) % cpu.CacheLinePadSize]byte
    }

    pages            pageAlloc // page allocation data structure
    spanalloc              fixalloc // allocator for span*
    cachealloc             fixalloc // allocator for mcache*
    specialfinalizeralloc  fixalloc // allocator for specialfinalizer*
    specialprofilealloc    fixalloc // allocator for specialprofile*
    specialReachableAlloc  fixalloc // allocator for specialReachable
    specialPinCounterAlloc fixalloc // allocator for specialPinCounter
    arenaHintAlloc         fixalloc // allocator for arenaHints
}

For mheap, there are mainly four tasks to do at runtime:

Initialize the heap
Allocate mspan
Free mspan
Heap expansion

Let's discuss these four things in order.

Initialization

Heap initialization occurs during the program's bootstrap phase, which is also the scheduler's initialization phase. The call order is:

schedinit() -> mallocinit() -> mheap_.init()

During initialization, it's mainly responsible for executing the initialization work of various allocators:

func (h *mheap) init() {
  h.spanalloc.init(unsafe.Sizeof(mspan{}), recordspan, unsafe.Pointer(h), &memstats.mspan_sys)
  h.cachealloc.init(unsafe.Sizeof(mcache{}), nil, nil, &memstats.mcache_sys)
  h.specialfinalizeralloc.init(unsafe.Sizeof(specialfinalizer{}), nil, nil, &memstats.other_sys)
  h.specialprofilealloc.init(unsafe.Sizeof(specialprofile{}), nil, nil, &memstats.other_sys)
  h.specialReachableAlloc.init(unsafe.Sizeof(specialReachable{}), nil, nil, &memstats.other_sys)
  h.specialPinCounterAlloc.init(unsafe.Sizeof(specialPinCounter{}), nil, nil, &memstats.other_sys)
  h.arenaHintAlloc.init(unsafe.Sizeof(arenaHint{}), nil, nil, &memstats.other_sys)

  h.spanalloc.zero = false
  for i := range h.central {
    h.central[i].mcentral.init(spanClass(i))
  }

  h.pages.init(&h.lock, &memstats.gcMiscSys, false)
}

This includes the allocator mheap.spanalloc responsible for allocating mspan, the allocator mheap.pages responsible for page allocation, and the initialization of all mcentral.

Allocation

In mheap, mspan allocation is completed by the mheap.allocSpan method:

func (h *mheap) allocSpan(npages uintptr, typ spanAllocType, spanclass spanClass) (s *mspan)

If the requested memory is small enough, i.e., satisfies npages < pageCachePages/4, it tries to get an available mspan from the local P's mspan cache without locking. If P's cache is empty, it will first initialize it:

// If the cache is empty, refill it.
if c.empty() {
    lock(&h.lock)
    *c = h.pages.allocToCache()
    unlock(&h.lock)
}

Then it gets from P cache, completed by the mheap.tryAllocMSpan method:

pp := gp.m.p.ptr()
if !needPhysPageAlign && pp != nil && npages < pageCachePages/4 {
    c := &pp.pcache
    base, scav = c.alloc(npages)
    if base != 0 {
        s = h.tryAllocMSpan()
        if s != nil {
            goto HaveSpan
        }
    }
}

The code for getting mspan from P cache is as follows. It tries to get the last mspan in the cache:

func (h *mheap) tryAllocMSpan() *mspan {
  pp := getg().m.p.ptr()
  // If we don't have a p or the cache is empty, we can't do
  // anything here.
  if pp == nil || pp.mspancache.len == 0 {
    return nil
  }
  // Pull off the last entry in the cache.
  s := pp.mspancache.buf[pp.mspancache.len-1]
  pp.mspancache.len--
  return s
}

If the requested memory is relatively large, it will be allocated on the heap. This process requires holding a lock:

lock(&h.lock)
if base == 0 {
    // Try to acquire a base address.
    base, scav = h.pages.alloc(npages)
    if base == 0 {
        var ok bool
        growth, ok = h.grow(npages)
        if !ok {
            unlock(&h.lock)
            return nil
        }
        base, scav = h.pages.alloc(npages)
        if base == 0 {
            throw("grew heap, but no adequate free space found")
        }
    }
}
if s == nil {
    // We failed to get an mspan earlier, so grab
    // one now that we have the heap lock.
    s = h.allocMSpanLocked()
}
unlock(&h.lock)

First, it uses pageAlloc.alloc to allocate enough page memory. If heap memory is insufficient, mheap.grow performs expansion. After page memory allocation is completed, the linked allocator mheap.spanalloc allocates 64 mspan to P's local cache (64 is exactly half the cache array length), then returns an available mspan from P's cache:

func (h *mheap) allocMSpanLocked() *mspan {
  assertLockHeld(&h.lock)

  pp := getg().m.p.ptr()
  if pp == nil {
    // We don't have a p so just do the normal thing.
    return (*mspan)(h.spanalloc.alloc())
  }
  // Refill the cache if necessary.
  if pp.mspancache.len == 0 {
    const refillCount = len(pp.mspancache.buf) / 2
    for i := 0; i < refillCount; i++ {
      pp.mspancache.buf[i] = (*mspan)(h.spanalloc.alloc())
    }
    pp.mspancache.len = refillCount
  }
  // Pull off the last entry in the cache.
  s := pp.mspancache.buf[pp.mspancache.len-1]
  pp.mspancache.len--
  return s
}

According to the above two situations, an available mspan can ultimately be obtained. Finally, after initializing mspan, it can be returned:

HaveSpan:
  h.initSpan(s, typ, spanclass, base, npages)
  return s

Free

Since mspan is allocated by the linked allocator, naturally when freeing memory, it's also released by it:

func (h *mheap) freeSpanLocked(s *mspan, typ spanAllocType) {
  assertLockHeld(&h.lock)
  // Mark the space as free.
  h.pages.free(s.base(), s.npages)
  s.state.set(mSpanDead)
  h.freeMSpanLocked(s)
}

First, it marks the specified page memory as released through the page allocator mheap.pages, then sets mspan's state to mSpanDead, and finally the mheap.spanalloc allocator releases mspan:

func (h *mheap) freeMSpanLocked(s *mspan) {
  assertLockHeld(&h.lock)

  pp := getg().m.p.ptr()
  // First try to free the mspan directly to the cache.
  if pp != nil && pp.mspancache.len < len(pp.mspancache.buf) {
    pp.mspancache.buf[pp.mspancache.len] = s
    pp.mspancache.len++
    return
  }
  // Failing that (or if we don't have a p), just free it to
  // the heap.
  h.spanalloc.free(unsafe.Pointer(s))
}

If P cache is not full, it will be put into P's local cache to continue use. Otherwise, it will be freed back to heap memory.

Expansion

The page memory space managed by heaparena is not all allocated at the beginning. It's only allocated when memory is needed. The one responsible for expanding heap memory is the mheap.grow method. Below is simplified code:

func (h *mheap) grow(npage uintptr) (uintptr, bool) {
  assertLockHeld(&h.lock)
  ask := alignUp(npage, pallocChunkPages) * pageSize
  totalGrowth := uintptr(0)
  end := h.curArena.base + ask
  nBase := alignUp(end, physPageSize)

  if nBase > h.curArena.end || end < h.curArena.base {
    av, asize := h.sysAlloc(ask, &h.arenaHints, true)
        if uintptr(av) == h.curArena.end {
      h.curArena.end = uintptr(av) + asize
    } else {
      // Switch to the new space.
      h.curArena.base = uintptr(av)
      h.curArena.end = uintptr(av) + asize
    }
    nBase = alignUp(h.curArena.base+ask, physPageSize)
  }
  ...
}

It first calculates the required memory based on npage and aligns it, then determines whether the current heaparena has enough memory. If not enough, mheap.sysAlloc applies for more memory for the current heaparena or allocates a new heaparena:

func (h *mheap) sysAlloc(n uintptr, hintList **arenaHint, register bool) (v unsafe.Pointer, size uintptr) {
  n = alignUp(n, heapArenaBytes)
  if hintList == &h.arenaHints {
    v = h.arena.alloc(n, heapArenaBytes, &gcController.heapReleased)
    if v != nil {
      size = n
      goto mapped
    }
  }
    ...
}

First, it tries to use the linear allocator mheap.arena to apply for a piece of memory in the pre-allocated memory space. If it fails, it expands based on hintList. hintList's type is runtime.arenaHint, which specifically records address information related to heaparena expansion:

for *hintList != nil {
    hint := *hintList
    p := hint.addr
  v = sysReserve(unsafe.Pointer(p), n)
    if p == uintptr(v) {
        hint.addr = p
        size = n
        break
    }
    if v != nil {
        sysFreeOS(v, n)
    }
    *hintList = hint.next
    h.arenaHintAlloc.free(unsafe.Pointer(hint))
}

After memory application is completed, it's updated to the arenas two-dimensional array:

for ri := arenaIndex(uintptr(v)); ri <= arenaIndex(uintptr(v)+size-1); ri++ {
    l2 := h.arenas[ri.l1()]
    var r *heapArena
    r = (*heapArena)(h.heapArenaAlloc.alloc(unsafe.Sizeof(*r), goarch.PtrSize, &memstats.gcMiscSys))
    atomic.StorepNoWB(unsafe.Pointer(&l2[ri.l2()]), unsafe.Pointer(r))
}

Finally, the page allocator marks this piece of memory as ready:

// Update the page allocator's structures to make this
// space ready for allocation.
h.pages.grow(v, nBase-v)
totalGrowth += nBase - v

Object Allocation

When Go allocates memory for objects, it divides them into three different types based on size:

Tiny objects - tiny, less than 16B
Small objects - small, less than 32KB
Large objects - large, greater than 32KB

According to these three different types, different logic is executed during memory allocation. The function responsible for allocating object memory is runtime.mallocgc, with the following function signature:

func mallocgc(size uintptr, typ *_type, needzero bool) unsafe.Pointer

It has only three parameters: memory size, type, and a boolean value indicating whether memory needs to be cleared. It's the entry function for all Go object memory allocation. When using the new function to create pointers, it also enters this function. When memory allocation succeeds, the returned pointer is the object's address. In the mspan section, it was mentioned that each mspan has a spanClass. spanClass determines mspan's fixed size. Go divides the range from [0, 32KB] into 68 different sizes. So Go memory is composed of several mspan linked lists of different fixed sizes. When allocating object memory, just calculate the corresponding spanClass according to object size, then find the corresponding mspan linked list according to spanClass, and finally look for available mspan from the linked list. This hierarchical approach can more effectively solve the memory fragmentation problem.

Tiny Objects

All non-pointer tiny objects less than 16B are allocated to the same contiguous memory by the tiny allocator in P. In runtime.mcache, the tiny field records the base address of this memory:

type mcache struct {
  tiny       uintptr
  tinyoffset uintptr
  tinyAllocs uintptr
}

The size of tiny objects is determined by the runtime.maxTinySize constant, which is 16B. The memory block used to store tiny objects is also this size. Generally, objects stored here are some small strings. The part of code responsible for allocating tiny objects is as follows:

if size <= maxSmallSize {
    if noscan && size < maxTinySize {
      off := c.tinyoffset
      if off+size <= maxTinySize && c.tiny != 0 {
        x = unsafe.Pointer(c.tiny + off)
        c.tinyoffset = off + size
        c.tinyAllocs++
        mp.mallocing = 0
        releasem(mp)
        return x
      }

      // Allocate a new maxTinySize block.
      span = c.alloc[tinySpanClass]
      v := nextFreeFast(span)
      if v == 0 {
        v, span, shouldhelpgc = c.nextFree(tinySpanClass)
      }
      x = unsafe.Pointer(v)
      (*[2]uint64)(x)[0] = 0
      (*[2]uint64)(x)[1] = 0

      if (size < c.tinyoffset || c.tiny == 0) {
        c.tiny = uintptr(x)
        c.tinyoffset = size
      }
      size = maxTinySize

If the current tiny memory block has enough space to accommodate, i.e., off+size <= maxTinySize, it directly uses the current memory block. If not enough, it first tries to get available space from mcache's span cache. If that doesn't work either, it applies for an mspan from mcentral. Regardless, it will ultimately get an available address, and finally replace the old with the new tiny object memory block.

Small Objects

Most objects in Go language runtime are small objects in the range [16B, 32KB]. Small object allocation process is the most troublesome, but the code is the least. The part of code responsible for small object allocation is as follows:

var sizeclass uint8
if size <= smallSizeMax-8 {
    sizeclass = size_to_class8[divRoundUp(size, smallSizeDiv)]
} else {
    sizeclass = size_to_class128[divRoundUp(size-smallSizeMax, largeSizeDiv)]
}
size = uintptr(class_to_size[sizeclass])
spc := makeSpanClass(sizeclass, noscan)
span = c.alloc[spc]
v := nextFreeFast(span)
if v == 0 {
    v, span, shouldhelpgc = c.nextFree(spc)
}
x = unsafe.Pointer(v)
if needzero && span.needzero != 0 {
    memclrNoHeapPointers(x, size)
}

First, it calculates which spanClass category should be used based on the object's size. Then runtime.nextFreeFast tries to get available memory space from the corresponding cache mspan in mcache according to spanClass:

func nextFreeFast(s *mspan) gclinkptr {
  theBit := sys.TrailingZeros64(s.allocCache) // Is there a free object in the allocCache?
  if theBit < 64 {
    result := s.freeindex + uintptr(theBit)
    if result < s.nelems {
      freeidx := result + 1
      if freeidx%64 == 0 && freeidx != s.nelems {
        return 0
      }
      s.allocCache >>= uint(theBit + 1)
      s.freeindex = freeidx
      s.allocCount++
      return gclinkptr(result*s.elemsize + s.base())
    }
  }
  return 0
}

mspan.allocCache's role is to record whether memory space is used by objects. It divides memory one by one according to object count rather than by space size. This is equivalent to viewing mspan as an object array, as shown in the figure below.

allocCache is a 64-bit number. Each bit corresponds to a piece of memory space. If a bit is 0, it indicates the memory is used by an object. If it's 1, it indicates the memory is idle. sys.TrailingZeros64(s.allocCache)'s purpose is to calculate the number of trailing zeros. If the result is 64, it indicates there's no idle memory available. If there is, it calculates the idle memory offset, adds mspan's base address, and returns.

When mcache doesn't have enough space, it goes to mcentral to apply. This work is completed by the mcache.nextFree method:

func (c *mcache) nextFree(spc spanClass) (v gclinkptr, s *mspan, shouldhelpgc bool) {
  s = c.alloc[spc]
  shouldhelpgc = false
  freeIndex := s.nextFreeIndex()
  if freeIndex == s.nelems {
    c.refill(spc)
    shouldhelpgc = true
    s = c.alloc[spc]

    freeIndex = s.nextFreeIndex()
  }
  v = gclinkptr(freeIndex*s.elemsize + s.base())
  s.allocCount++
  return
}

The mcache.refill in it is responsible for applying for an available mspan from mcentral:

func (c *mcache) refill(spc spanClass) {
  ...
  s = mheap_.central[spc].mcentral.cacheSpan()
  ...
}

The mcentral.cacheSpan method performs expansion via mcentral.grow when memory is insufficient. Expansion applies for new mspan from mheap:

func (c *mcentral) grow() *mspan {
  ...
  s := mheap_.alloc(npages, c.spanclass)
  ...
  return s
}

So in the end, small object memory allocation goes level by level: first mcache, then mcentral, and finally mheap. mcache allocation cost is the lowest because it's P's local cache, and allocating memory doesn't require holding a lock. mcentral is next. Directly applying for memory from mheap has the highest cost because the mheap.alloc method competes for the entire heap's global lock.

Large Objects

Large object allocation is the simplest. If the object size exceeds 32KB, it directly applies for a new mspan from mheap to accommodate. The part of code responsible for large object allocation is as follows:

shouldhelpgc = true
span = c.allocLarge(size, noscan)
span.freeindex = 1
span.allocCount = 1
size = span.elemsize
x = unsafe.Pointer(span.base())
if needzero && span.needzero != 0 {
    if noscan {
        delayedZeroing = true
    } else {
        memclrNoHeapPointers(x, size)
    }
}

Among them, mcache.allocLarge is responsible for applying for large object memory space from mheap:

func (c *mcache) allocLarge(size uintptr, noscan bool) *mspan {
  ...
  spc := makeSpanClass(0, noscan)
  s := mheap_.alloc(npages, spc)
  ...
  return s
}

From the code, it can be seen that large objects use spanClass value of 0. Basically, one large object occupies one mspan.

Others

Memory Statistics

Go runtime exposes a function ReadMemStats to users, which can be used to统计 runtime memory conditions:

func ReadMemStats(m *MemStats) {
  _ = m.Alloc // nil check test before we switch stacks, see issue 61158
  stopTheWorld(stwReadMemStats)

  systemstack(func() {
    readmemstats_m(m)
  })

  startTheWorld()
}

But using it comes at a very high cost. As can be seen from the code, STW is required before analyzing memory conditions. STW duration may range from a few milliseconds to hundreds of milliseconds. It's generally only used during debugging and troubleshooting. The runtime.MemStats structure records information related to heap memory, stack memory, and GC:

type MemStats struct {
    // Overall statistics
    Alloc uint64
    TotalAlloc uint64
    Sys uint64
    Lookups uint64
    Mallocs uint64
    Frees uint64

    // Heap memory statistics
    HeapAlloc uint64
    HeapSys uint64
    HeapIdle uint64
    HeapInuse uint64
    HeapReleased uint64
    HeapObjects uint64

    // Stack memory statistics
    StackInuse uint64
    StackSys uint64

    // Memory component statistics
    MSpanInuse uint64
    MSpanSys uint64
    MCacheInuse uint64
    MCacheSys uint64
    BuckHashSys uint64

    // GC related statistics
    GCSys uint64
    OtherSys uint64
    NextGC uint64
    LastGC uint64
    PauseTotalNs uint64
    PauseNs [256]uint64
    PauseEnd [256]uint64
    NumGC uint32
    NumForcedGC uint32
    GCCPUFraction float64
    EnableGC bool
    DebugGC bool

    BySize [61]struct {
        Size uint32
        Mallocs uint64
        Frees uint64
    }
}

NotInHeap

The memory allocator is obviously used to allocate heap memory, but the heap is divided into two parts: one part is the heap memory needed by Go runtime itself, and the other part is the heap memory open to users. So in some structures, you can see such embedded fields:

_ sys.NotInHeap

This indicates that the type's memory will not be allocated on the user heap. This kind of embedded field is especially common in memory allocation components, such as the structure representing the user heap runtime.mheap:

type mheap struct {
  _ sys.NotInHeap
}

The real role of sys.NotInHeap is to avoid memory barriers to improve runtime efficiency, while the user heap needs to run GC so it needs memory barriers.

memory ​

Allocators ​

Linear Allocation ​

Linked Allocation ​

Memory Components ​

mspan ​

heaparena ​

mcache ​

mcentral ​

mheap ​

Initialization ​

Allocation ​

Free ​

Expansion ​

Object Allocation ​

Tiny Objects ​

Small Objects ​

Large Objects ​

Others ​

Memory Statistics ​

NotInHeap ​
